The Condenser Fan Behind the Toe-Kick

A condenser fan is a small motor carrying a large share of the work. Island remodels tend to fit toe-kick boards and trim tight around the grille, and damp lake air helps lint cling to the coil in front of the blades, so this fan spends its life pulling against a blockage.

Where it sits and when it runs

On Sub-Zero undercounter units the condenser is at the bottom, behind the kickplate, with the fan drawing room air through it. On the models we service the fan runs with the compressor and stops with it. A still fan during a rest is normal; one that never stops is usually a coil that cannot shed its heat.

How it gives up

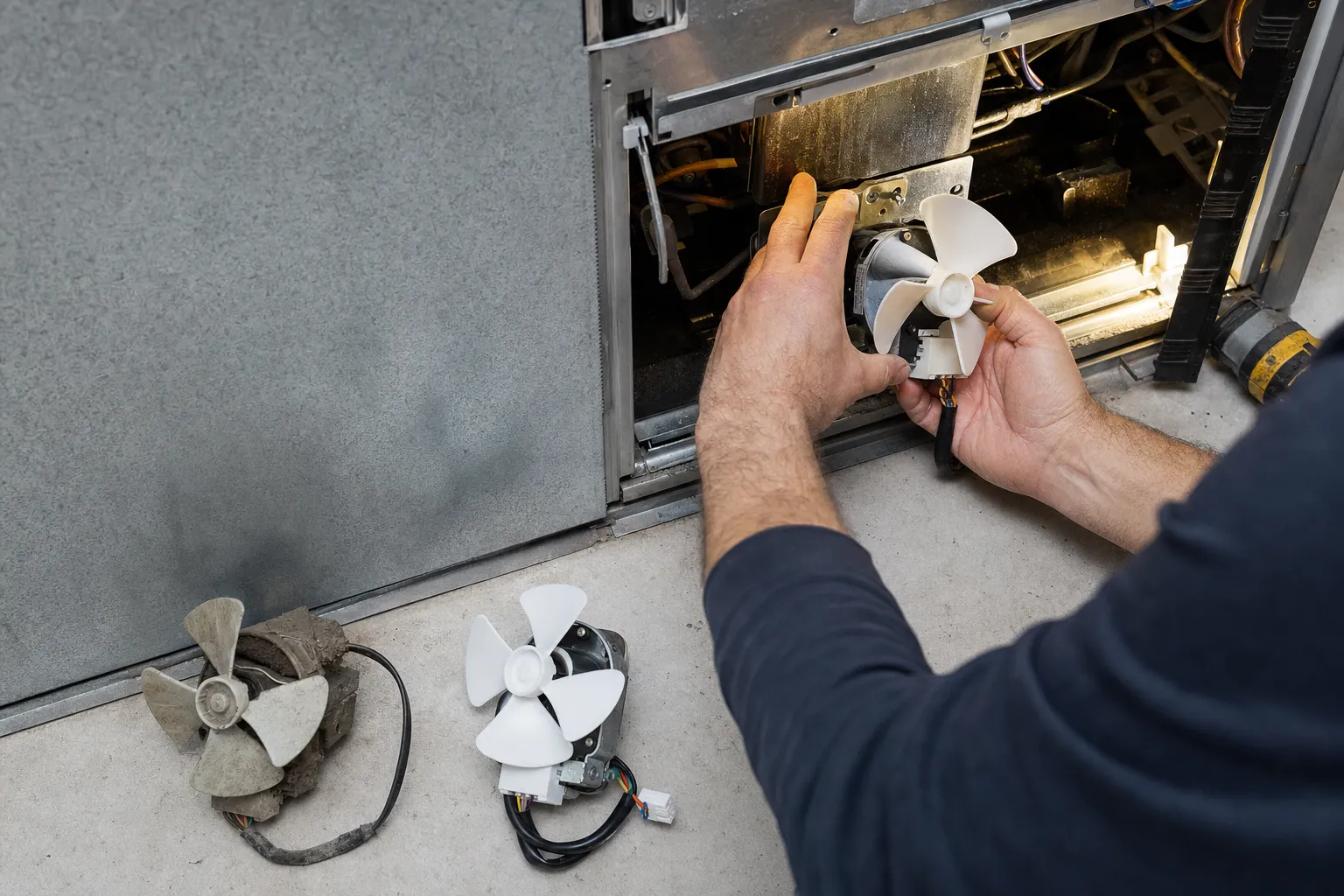

Dust and pet hair load the blades, the motor runs hot, and the bearings hum or tick before the fan slows or stalls. A blade out of balance or a motor working against its bearings is what we hear first. A stalled fan leaves the compressor running long in its own heat, which is why the fan is among the first things we look at when both zones of a wine unit warm together.

Your side and ours

Cleaning the coil is owner maintenance in Sub-Zero’s guides: power off first, gloves, a soft brush and a vacuum drawn along the fins, every three to six months on UC-24 models and every six to twelve on the Designer line, sooner with pets. Keeping the grille clear matters as much, and the note on toe-kick ventilation covers the layouts that starve it. The motor itself is ours, priced after the diagnosis as refrigerator repair.
